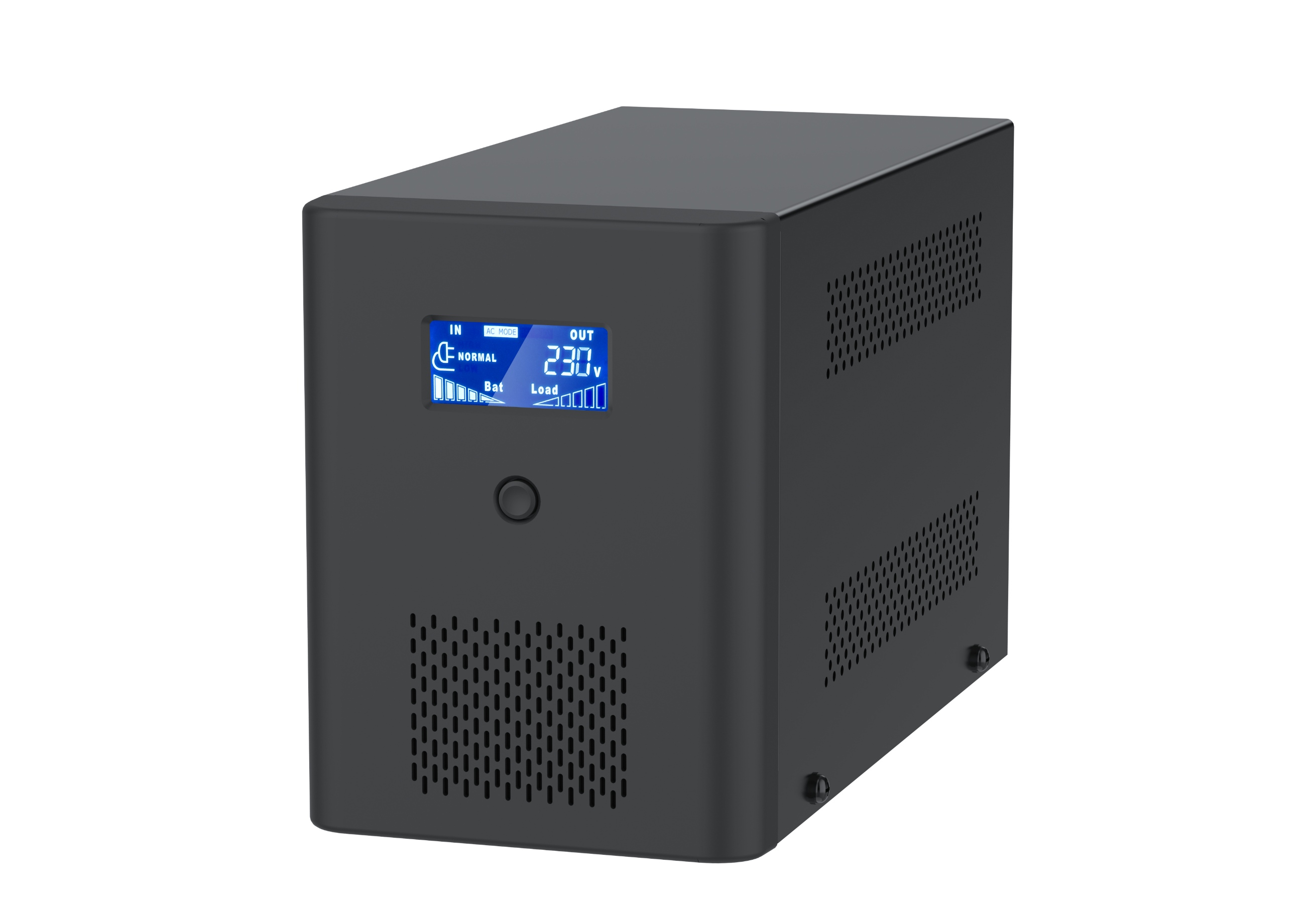

Pure Sine Wave Inverter 300-500W

Characteristics Technical Specifications Documents

●Tower design

●DSP digital control technology

●Pure sine wave output

●Suitable for all kinds of loads, such as resistive, inductive and rectified loads and motors

●Use of pulse by pulse technology, improving load shock ability

Charge current Max. 15A

●Settable no-load shutdown and energy saving mode

●Short circuit, overload and low battery protection

●Intelligent long backup time up to 10h (based on battery bank and loads)

●Compatible with generators, and matching of inverter and generator is settable.

●Usable as off-grid solar inverter if combined with EAST charge controller


MODEL

300W

500W

DC INPUT

Nominal input voltage

12V

DC input voltage range

10~15V

AC INPUT

AC voltage

150~282Vac for 220Vac, 156~294Vac for 230Vac,

163~307Vac for 240Vac,

Nominal input frequency

50 / 60Hz (auto-sensing), 42.5~57.5Hz for 50Hz, 51~69Hz for 60Hz

OUTPUT

DC mode output voltage

220 / 230 / 240Vac ±5%

AC mode output voltage

220 / 230 / 240Vac ±5% or 100 / 110 / 115 / 120Vac ±5%

Nominal output frequency

50/60Hz ±0.3 (auto-sensing & settable)

Output waveform

Pure sine wave

Output power

300W

500W

Efficiency

Max. 95% (mains mode); Max. 80% (inverter mode)

Transfer time

≤10ms

Power factor

1.0

THD

<5% (linear load)

Inductive load

Yes

Motor load

Yes

Rectifier load

Yes

Overload capability

Mains mode: 110% for 120s, 125% for 60s, 150% for 10s

Inverter mode: 110% for 60s, 125% for 10s, 150% for 10s (shut down)

BATTERIES

Charging current

5A(optional 10A/15A)

10A(optional 5A/15A)

Equalizing charge voltage

Single battery 14.1Vdc (default), 13.6 ~ 15Vdc adjustable

Floating charge voltage

Single battery 13.5Vdc (default), 13.2 ~ 14.6Vdc adjustable

OTHERS

Human-machine interface

LCD&BUZZER

Operating temperature

0~40

Operating humidity

5% ~ 95% RH

Forced air cooling

Variable speed fans

Net weight (kg)

5.3

7.5

Gross weight (kg)

5.8

8

Dimensions (W×D×H) (mm)

281×132×176

Packaged dimensions (W×D×H) (mm)

355×195×251
